FC 2725 SHOCK ABSORBERS

FC 2725 SHOCK ABSORBERS
FC 2725 SHOCK ABSORBERS
Send Inquiry
Product Code : FC 2725
Product Description

With an aim to fulfill varied demands of clients with utmost satisfaction, we are engaged in providing a wide range of quality checked FC 2725 Shock Absorbers with impeccable cross flat finish. With the use of superior grade raw materials, these absorbers are manufactured by a team of skilled professionals. The offered absorbers are widely used in industrial equipment or machines for compensating shocks. The provided FC 2725 Shock Absorbers can be bought from us with maximum impact speed of 3.2 meter per second at cost-effective prices.

Key Points:



  • Dimensionally accurate
  • Incredible strength
  • Easy to install
  • Designed with 25 mm stroke length



FC 2725 SHOCK ABSORBERS

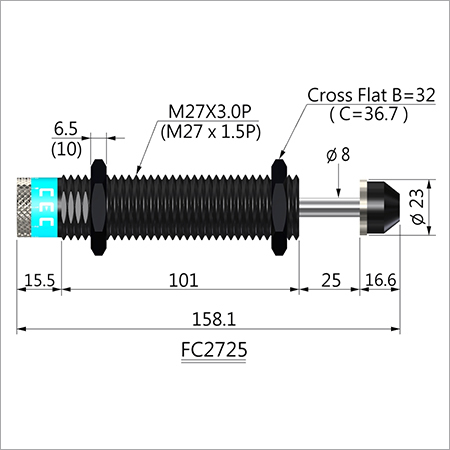

Technical specification:

  • M27X3.0P / (M27X1.5P)
  • Cross Flat B=32 (C=36.7)

Model

Stroke (mm)

Max NM Per Cycle (mm)

Max. Effective weight we (kg)

Max Impact Speed (M/S)

Max NM Per Hour (mm)

Operating Temperature ÂșC

FC 2725

25

78

15 ~ 624

3.2

70200

-10 ~ 70
